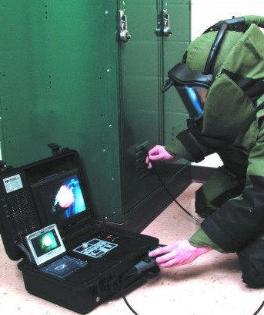

Model 178708 Non-Conductive Videoscope

Designed with non-conductive probe jackets specifically to promote safety in EOD investigations, these articulating
flexible scopes deliver clear, bright images from spaces nothing else could reach.

Videoscopes with ±120° articulation and no external conductive components, these ITI scopes were developed for the
most intense EOD/contraband search situations. The scopes are available in several working lengths, with a forward
line of sight and fixed 100° field of view.

These scopes feature ProTecht®, ITI's patented overtorque protection system for smooth articulation control that
minimizes accidental cable breakage to insure long life. The unique articulation control mechanism reduces cable wear
while increasing sensitivity.

The control box consists of: The Camera Control Unit; with camera controls located on a pressure sensitive control
panel, Multiple Light Sources; with interfaces conveniently located on the exterior of the pelican case.  A Scope Mounting
Bracket is located next to the case handle. This allows for hands free operations. An RF receiver/transmitter option can
be ordered and mounted in the control box. The 10” high resolution, low-glare LCD monitor is designed for easy viewing
even in bright sunlight. The system also includes a Digital Video Recorder for evidence and training documentation.

Scope Specifications:
Probe Diameter 8mm
Working Length 2M, 3M, 4.5M, 6M
Line of Sight Forward (0°)
Field of View 100°
Angle of Articulation ± 120° U/D, ± 120° L/R
Depth of Focus 1/2" to infinity

Kit Includes:
178708 Non-Conductive Articulating Videoscope
10” Color Monitor Display
Pressure Sensitive Control Panel
Multiple Light Sources
Digital Documentation System
Scope Mounting Bracket for Hands Free Operation
Heads-Up Display (Optional)
RF Receiver/Transmitter
AC Power Supply & DC Battery, 115VAC Charger (On Back)

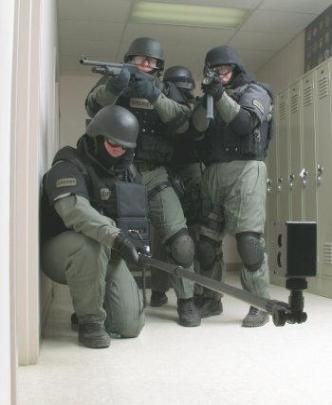

Model 172640 IR Telescopic Camera

View into the most difficult, inaccessible areas.

A complete compact and portable video camera system
for viewing or inspecting into normally out of reach areas.
The camera mounted on the end of a 13.8 ft. telescopic
pole is ideal for searching buildings, ships, aircraft and
vehicles for firearms, explosive devices, contraband or
criminal suspects.

The highly mobile and versatile system incorporates a
high-resolution monochrome camera with integrated
powerful covert IR illumination. For video viewing, ITI
offers a shoulder strap equipped field monitor. An
optional Heads-Up display unit which avoids emission
of stray light is available. Power is supplied by a
rechargeable battery pack.

The adjustable camera head allows the user to view
around corners and into crawl spaces to search for
obstacles and/or barriers. Infrared enhancement allows
the unit to be used in low or no light situations.

Product Specifications:
Camera Head: 3.5"H x 2.38"W x 2.0"D
Working Length: 50" collapsed, 13.8' extended
Field of View: 70°
Object Distance: Infinity

Model 172640 Kit Includes:
Telescopic Pole with Camera Head and IR Illuminator
High Resolution Monitor
Compact Soft Bag for Monitor and Battery Pack
Battery Pack and Charger
Carrying Case with Protective Foam Insert

Optional Accessories:
Model 126395 Heads-Up Video Display
P/N 551-021 Spare Battery Pack

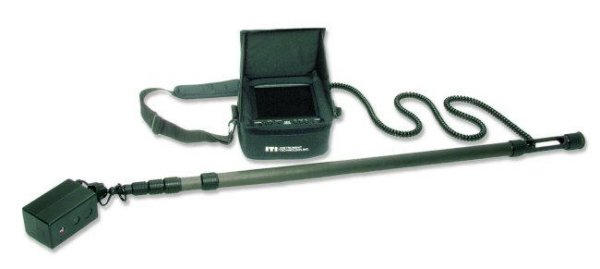

Model 172650 IR/Thermal Telescopic Camera Kit

See into inaccessible areas with two viewing options.

The IR/Thermal Camera Kit expands the capabilities of the IR Telescopic Camera Kit by adding a second camera - a
Thermal Camera - which “sees” much more of the infrared region. Objects are differentiated by the heat they radiate, not
by the light they reflect, making it possible to view in total darkness. The user can switch between the two camera
functions according to their needs. Both images are optimized for infinity viewing.

The highly mobile and versatile system incorporates a high-resolution monochrome camera with integrated powerful IR
illumination and a thermal imaging camera to provide a real-time, infrared energy, “heat” signature video display.



















Product Specifications:
Camera Head: 5.2"H x 2.6"W x 3.5"D
Working Length: 53" collapsed, 13.8' extended
Field of View: B&W 70°/Thermal 50°
Object Distance: Infinity

Model 172650 Kit Includes:
Telescopic Pole with Camera Head and IR Illuminator
High Resolution Monitor
Compact Soft Bag for Monitor and Battery Pack
Battery Pack and Charger
Carrying Case with Protective Foam Insert

Optional Accessories:
Model 126395 Heads-Up Video Display
P/N 551-021 Spare Battery Pack

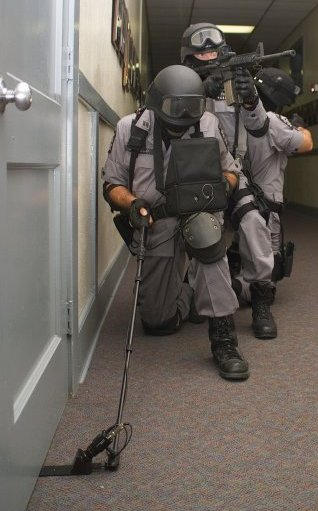

Model 173110 Under-Door Scope

See into a room before opening the door.

No more Surprises

Dangerous situations become deadly when surprises
lurk in the next room. While no one can eliminate all
hazards, crisis management demands every effort be
made to minimize physical danger.

The Under-Door Scope slides under doors in less
than a quarter of an inch of space. You can pivot its
offset 55° field of view to observe the whole room from
the floor up.

The Under-Door Scope features a dedicated C-Mount
for video camera attachment and an attachable viewing
eyepiece for visual observations.

The kit also includes a Right Angle Viewing Adapter
that attaches to the front of the Under-Door Scope,
showing you a clear view of the inside surface of the
door and any barricades or booby traps that may be
present.

See in the dark - from outside a closed door.
The Under-Door scope accommodates accessories
that let you see in the dark.

ITI's Third-Generation Night Vision Pocket Scope
easily attaches directly to the body of the Under-Door
Scope for imaging. You see the enhanced image
directly, with a Visual Eyepiece Adapter, or optioanl
monitor using an optional video camera.

An infrared (IR) Emitter is also available to supplement
available light and create visual images from scenes too
dark to permit normal vision.

Model 173110 Kit Includes:
Under-Door Scope
Forward Oblique Viewing Adapter
Protective Carrying Case

Optional Accessories:
126320 B&W CCD Video Camera
173111 White Light Illuminator; requires: 125060A Light Source
173112 Under-Door Eyepiece
173113 IR Emitter Kit
173114 Telescopic Arm
173115 Right Angle Viewing Adapter
173116 3 Way Right Angle Viewing Adapter
176630 Night Vision Pocket Scope
176635 NVPS Video Adapter
126070/60 Video Adapter
126390 Monitor, Sun Shield w/ Case & Battery Pack for CCD & Monitor

Scope Specifications:
Thickness: 0.22"
Field of View: 55°
Working Length: 7"
Line of Sight: 30°

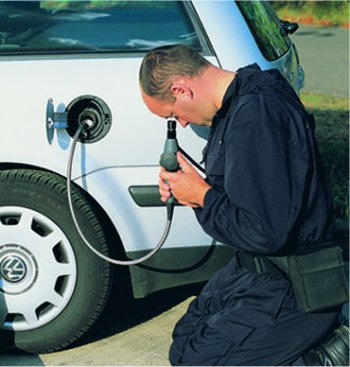

Model 1775XX Gas Tank / Search & Rescue Fiberscopes


Searches need large optics, powerful illumination,
and comparatively indestructible probe construction,
the large-diameter fiberscope that ITI builds with
extra optical fibers and heavy tungsten steel outer
jacket.

Used for direct visual inspections or adapted for
video viewing and recording, these instruments
are built to withstand severe field conditions and
produce clear visual evidence. A heavy-duty scope,
these models increase the operator's capability
with a two axis (4 way) articulating head.
The operator may scan an entire space using the
articulation control knobs located on the eyepiece
body.

These scopes feature ProTecht®, ITI's patented
overtorque protection system for smooth articulation
control that minimizes accidental cable breakage to
insure long life. The unique articulation control
mechanism reduces cable wear while increasing
sensitivity.


                                         The S&R Fiberscopes are designed as rugged, versatile, self-contained, remote
                                         viewing instruments. The 12mm dia. fiberscope, with more illumination fibers, is
                                         recommended for large volume tanks and search & rescue operations. The smaller
                                         diameter fiberscopes are best suited for viewing into more restricted areas,
                                         especially into gas tanks. All fiberscopes are equally suited for contraband searches.

                                         The tungsten steel probe can be submerged in gasoline, water, kerosene, fuel oil or
                                          jet fuel up to the eyepiece body. The eyepiece body is designed to be water resistant
                                         but not submersible.

                                         These scopes, with more illumination fibers, give you comparatively more light for
                                         viewing more distant objects. The scopes use very high resolution image bundles
                                         for optimum visual and/or video applications.

Scope Specifications:                                                                                 Model 1775XX Kits Include:
Available Probe Diameters:                                                                        Series 1775XX Gas Tank / S&R Fiberscope
-6mm (0.25")                                                                                          Model 126500 Eyeguard
-8mm (0.33")                                                                                          Model 125060 AC/DC Light Source
-12mm (0.47")                                                                                        Spare Lamp
Working Length 1.5M or 2M (Meters)                                                         AC Power Supply & DC Battery,115VAC Charger
Line of Sight Forward 0º
Field of View 60º Standard [20º, 40º & 100º Optional]
Angle of Articulation ± 130º 4 Way [U/D & L/R]
Depth of Focus 1/2" to infinity
Illumination Integral Fiber Guide for Maximum Illumination
Immersion Gasoline, Water, Kerosene, Fuel Oil or Jet Fuel
Model 1777XX Nonconductive Articulating Fiberscopes

Designed with nonconductive probe jackets specifically to
promote safety in EOD investigations, these articulating
flexible scopes deliver clear, bright images from spaces
nothing else could reach.

Fiberscopes with ±120° articulation and no external
conductive components, these ITI scopes were developed
for the most intense EOD/contraband search situations.
The scopes are available in several working lengths, with a
forward line of sight and fixed 40° - 60° field of view.

These scopes feature ProTecht®, ITI's patented overtorque
protection system for smooth articulation control that
minimizes accidental cable breakage to insure long life.
The unique articulation control mechanism reduces cable
wear while increasing sensitivity.

 Scope Specifications:
                                                                                             Available Probe Diameters:
                                                                                                    -4mm (0.16")
                                                                                                    -5mm (0.20")
                                                                                                    -6mm (0.25")
                                                                                                    -8mm (0.33")
                                                                                                    -12mm (0.47")
                                                                                             Working Length 0.4M (16") - 3M (118") depending
on                                                                                                                                 probe diameter
                                                                                             Line of Sight Forward 0º
                                                                                             Field of View 60º Standard [20º, 40º & 100º Optional]
                                                                                             Angle of Articulation ± 130º 4 Way [U/D & L/R]
                                                                                             Depth of Focus 1/2" to infinity
Kit Includes:
Series 1777XX Nonconductive Articulating Fiberscope
Model 126500 Eyeguard
Model 125060 AC/DC Light Source
Spare Lamp
AC Power Supply & DC Battery
115VAC Charger

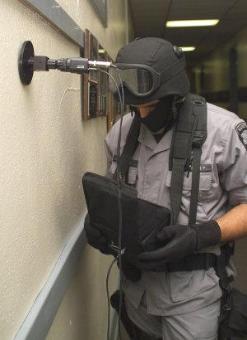

Model 174326 Thru-Wall/Ceiling Remote Viewing Scope

See into a room before opening the door.

No more Surprises


Dangerous situations become deadly when surprises lurk in the next
room. While no one can eliminate all hazards, crisis management
demands every effort be made to minimize physical danger.

The Thru-Wall/Ceiling Scope is easily installed by drilling straight
holes through walls or ceiling tiles. Penetration into the room is
through a small 2.6mm diameter hole.

Coverage of a room from a viewing access hole of less than 1/8"
with a 15° offset line of sight with a 55° field of view. With rotation of
the instrument an 85° view of the interior is acheived.

Thru-Wall & Thru-Ceiling Capability:
The 3" version is designed for Thru-Ceiling applications while the
7" & 11" versions are designed for Thru-Wall viewing.

The Thru-Wall/Ceiling Scope, like all ITI instruments, yields bright,
sharp images for video observation, and recording. It also comes
with a detachable eyepiece for simple visual observation, along with an expandable wall mounting bracket to adapt to
various wall thicknesses.

Available in 3", 7" and 11" Working Lengths.
Scope Specifications:
Diameter: 2.6mm (0.102")
Field of View: 55°
Working Length: 3, 7 or 11"
Line of Sight: 15°

Model 174326 Kit Includes:
Thru-Wall/Ceiling Scope
Support Bracket
Probe Guide
(2) Drill Bushings
Visual Eyepiece (included with 7" & 11" scopes)
Rubber Eyecup (included with 7" & 11" scopes)
(2) Drill Bits
Protective Carrying Case

Optional Accessories:
126320 B&W CCD Video Camera
126390 Monitor, Sun Shield w/ Case & Battery Pack for CCD & Monitor
Model 176630 Night Vision Pocket Scope
Model 126070 Visual Adapter for NVPS

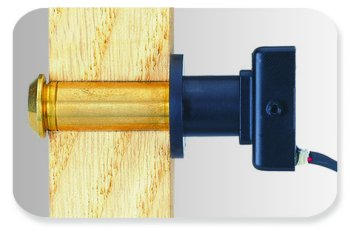

Reverse Peephole Scope

Model 176110 Reverse Peephole Scope

See into a room from in front of a closed door.

Designed for observation through a conventional
door peephole lenses, viewing from the outside in.
The Reverse Peephole Scope allows you to see
into a room. The handheld unit is postioned on an
ordinary interior or exterior door peephole lens.

This scope is intended to provide maximum
resolution, portability and quick setup. It features
an eyepiece that will couple to a standard ITI Video
Adapter or Night Vision Pocket Scope and all of
ITI's standard Eyepiece Adapters.

Product Specifications:
Diameter: 1.40"
Length: 2.62"
Field of View: 10° (Through a peephole viewer)
Line of Sight: Forward

Optional Accessories:
Model 126070 Video Adapter
Model 126320 CCD Camera
Model 176635 NVPS Video Adapter
Model 176630 Night Vision Pocket Scope (NVPS)
Model 176310 Peephole Camera

See what's happening in the hallway from behind
your closed door.

Designed for video observation and recording, the
Peephole Kit shows you what’s in the front of the
door or in the hallway  - when a situatuon needs to
be monitored and approaching the door is not safe
or too noisy to find out. The Peephole Camera Unit
attaches to an ordinary interior or exterior door
peephole.

You can see what it sees, safely, on a video monitor,
and you can record it for future reference.

The Peephole Camera installs in seconds and
connects to standard 110-Volt outlets with AC power
cables or 9V Battery. It operates with a B&W low-light
video camera equipped with a special video lens.

Video Specifications:
380 TV Lines, 0.5 Lux B&W, 9VDC
Available in NTSC or CCIR, 110 or 220 VAC

Model 176310 Kit Includes:
Peephole Lens with integral mounting flange.
CCD Camera with a cable and junction box.
AC to DC Power Supply
9V Battery Adapter (Battery not included).
Law Enforcement Products
Need more information contact us:
Phone: 734 207-8245
email:
info@imaging-dynamics.com
